COPLANAR

EASY PLAN 3M

Easy Plan 3M is an exclusive fixing technology by bonding! Installation is fast and easy, with no need to make holes in the roof, protecting the installation against leaks and infiltrations. It is lighter and stronger than any alternative with screws. A tailor-made solution specially designed to install photovoltaic modules on sandwich panels, metal roofs, gelcoat and TPO/PVC membranes.

Length: 195mm

Weight: 0,55kg/m²

Maximum distance: 1,00m

Tested and approved

EASY PLAN LIGHT

The Easy Plan Light has the advantages of an easy transportation and one of the best cost-benefit in coplanar solutions. Each piece has just 195mm, it means less weight on the roof and greater ease at the moment to install the photovoltaic modules.

Length: 195mm

Weight: 0,55kg/m²

Maximum distance: 1,00m

Landscape orientation

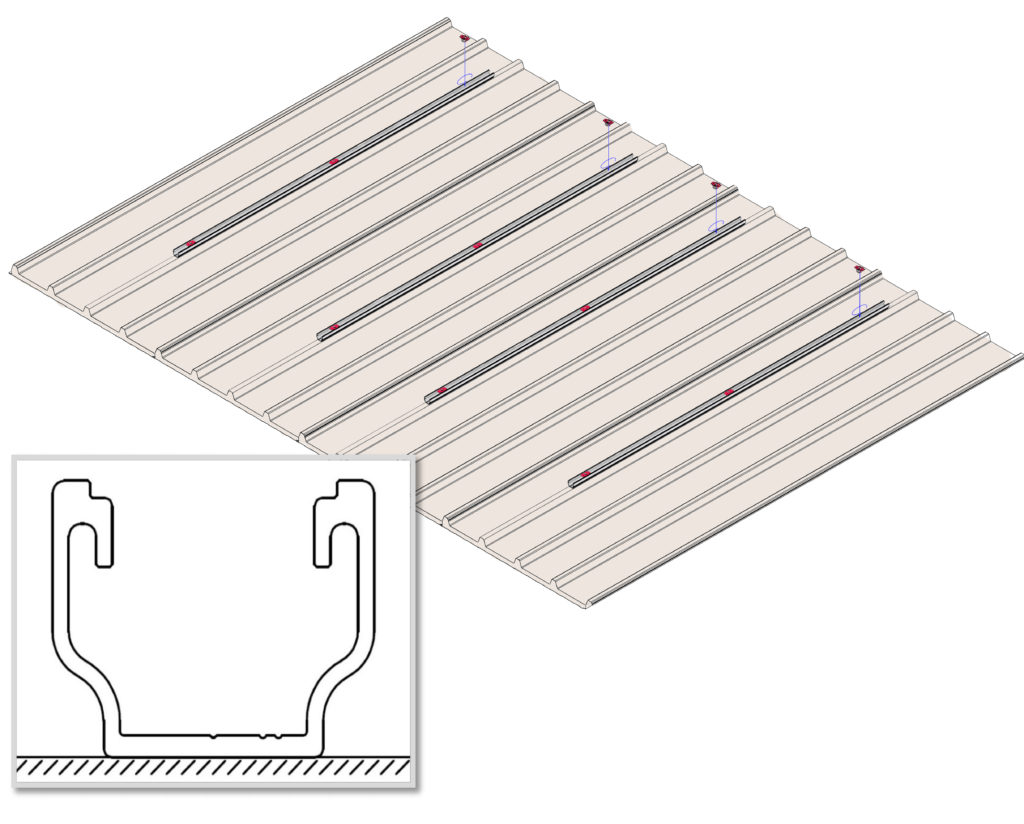

EASY PLAN LIGHT BAR

The Easy Plan Light Bar has a fixation made by screws. It has a special design, lighter and stronger. It can be installed in landscape or portrait.

Lenght: 4,5m

Weight: 1,38 kg/m²

Maximum distance: 1,00m

EASY ROOF

Easy Roof is a profile designed for the installation of photovoltaic modules on ceramic tiles. It has a slot to be mounted with “T” bolts.

Inclination: coplanar

Weight: 1,55 km/m²

Maximum distance: 1,5 m
