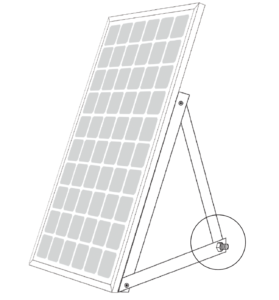

TRIANGLE

It is produced in aluminium 4mm and it can be addapted to any angle of inclination, with structure calculation to be installed in buildings with up to 22m height.

  • Thickness 4 mm
  • Adaptable to all types of coverage
  • Tilt Angle 1º to 35º

Features:

  • Warranty: 15 years;
  • Produced in gross aluminum profile, according to the standard AlMgSi 6060 (EN AW- 6060) and with T5 thermal treatment in accordance with the NP EN 573-3 and EN 755-2. For agressive environments can be applied special treatments (under request);
  • Stainless Steel-A2 accessories (DIN ISO 4759/1 and DIN 267/2). (For aggressive environments can be used Stainless steel-A4, under quotation);
  • Roof attachments in stainless steel and/or aluminium for different types of roof;
  • Snow load: 1 kN / m2 for locations under 1.000 m above the sea level;
  • Wind load: For a maximum height of 22m and in type II exposure in compliance with Eurocode, maximum wind speed according to structure calculation.
